Bus Expansion | Standardised performance

With the bus expansion modules from Bachmann electronic for the CPU station, additional backplanes with I/O modules can be added. A configuration is not required to do this; at system start all stations and modules will be automatically detected and initialized. All I/O modules can be reached transparently; the physical structure of the control system does not need to be considered. Organization of the controller in multiple stations permits both spatial adaptation to the control cabinet, as well as wide-area distribution of I/O modules for extended machines and plants. There is no restriction for the user in terms of performance and convenience. The interconnected backplanes behave as if they were connected on a single, large backplane.

Fold out to read more about the bus expansion module available:

Bus Expansion Modules BEx200 Series

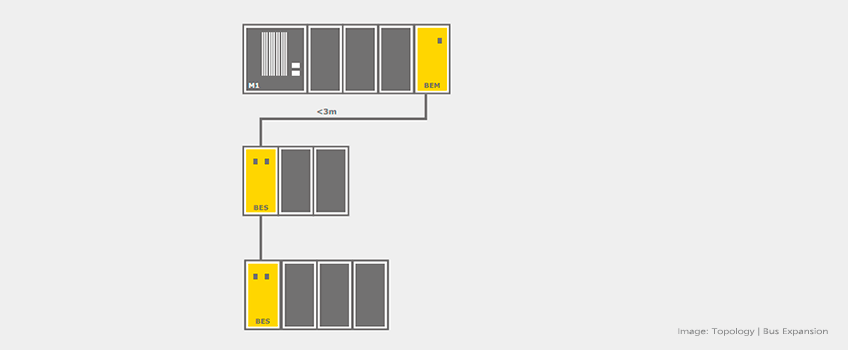

With the bus expansion modules BEM211 and BES212 a »high speed« connection up to 3 m away is possible with less than 1.5 µs access time to distributed I /O units. Up to six distributed substations can be directly interconnected in a daisy chain topology. Each substation can in turn handle up to 15 M1 standard modules. The wiring using RJ45 connectors is one advantage of this new technology. Thus wiring is significantly facilitated. A special protocol is not required to use the I /Os with the bus expansion. The user can access these modules directly: As if they were local. The bus expansion module BES212/N with integrated 24 V power supply provides power for the substation.

  • Bus expansion master module with 1 interface
  • Bus expansion slave module with 2 interfaces
  • Bus expansion slave module optionally with integrated power supply
  • Up to 6 local substations
  • Minimal signal delay
  • Distances of up to 3 m between 2 stations
  • Integrated watchdog on slave modules



See specifications for item:



Available accessories for BEx200 Series:

FASTBUS | Extensive networking possibilities

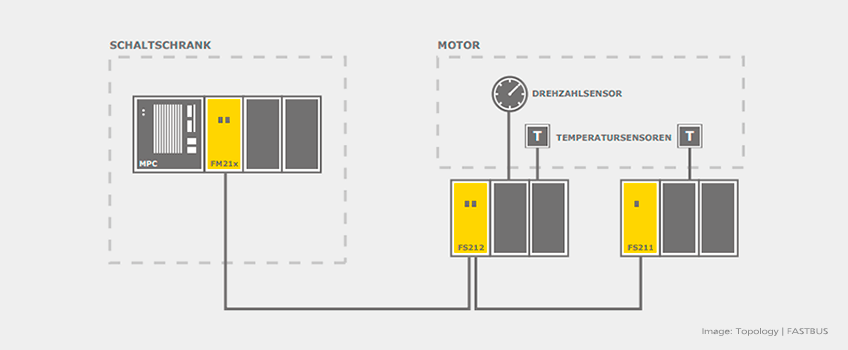

With the aid of FO-based FASTBUS solutions, numerous distributed tasks can be executed easily and reliably. FASTBUS permits a mixed topology of star and linear networking. In order to design distributed stations even more compact, FASTBUS slaves with integrated power supplies are available. These stations are capable of supplying the I/O modules on the substations. Between the individual stations distances of up to 2000 m can be bridged with no problems, in this regard the galvanic separation is ensured by the fiber optic connection. Use of the FASTBUS does not require a configuration, or other special handling in the software, but rather functions in accordance with the »plug and play« principle.

Fold out to read more about the different FASTBUS modules:

FASTBUS Modules Fx210 Series

The FASTBUS modules, FM211, FM212, FS211/N, and FS212/N are designed to enable distribution of substations over long distances with a very low signal delay. The power supply integrated in the FASTBUS slave modules, FS211/N and FS212/N can supply the I /O modules of a substation.

  • FASTBUS master modules with 1 or 2 FO interfaces
  • FASTBUS slave modules with 1 or 2 FO interfaces
  • FASTBUS slave modules with integrated power supply
  • Up to 15 distributed substations
  • Distances to 40 m for POF cable, 150 m for HCS cables or 200 m for special HCS cables between 2 stations
  • Status display (RUN/ERR) and display for fiber type
  • Minimal signal delay



See specifications for item:



Available accessories for Fx210 Series:

HCS Cable

 POF Cable

Terminal 03-pins grid

FASTBUS Modules Fx220 Series

The FASTBUS modules FM221, FM222, FS221 and FS222 are designed to enable distribution of substations over long distances with a very low signal delay. The power supply integrated in the FASTBUS slave modules FS221/N and FS222/N can supply the I/O modules of a substation. The flexible connector concept allows easy connection via a patch cable or an industrial grade push-pull plug connection via an adapter.

  • FASTBUS master modules with 1 or 2 FO interfaces
  • FASTBUS slave modules with integrated power supply
  • Up to 15 distributed substations
  • Connection technology via robust Harting PushPull® connector or LC patch cable
  • Distances to 2000 m via multimode cable
  • Minimal signal delay
  • ColdClimate models (CC)



See specifications for item:



Available accessories for Fx220 Series:
