Front Terminals and Terminal Sets
Source: Bachmann System Overview catalog | Bachmann electronic GmbH www.bachmann.info.
The standard connection technology for digital and analog signals of the M1 controller system is implemented with robust spring-loaded or screw terminals that can be fixed securely with a screw flange. The product portfolio has the right connection to suit your requirements:
Terminals with 3.5 mm pitch for analog signals or high density terminals for digital signals, and 5.08 mm pitch terminals for digital signals and power supply connections.
Terminals with a 7.62 mm pitch are suitable for signals such as for grid measuring modules as they can meet particularly high requirements with regard to isolation.
The front terminals are compatible with the Phoenix Contact COMBICON® connection (5.08 and 7.62 pitch) or miniCOMBICON® (3.5 pitch).
The following features are provided depending on type:
- Terminals to a proven industrial standard
- Space saving pitch, depending on signal type
- Robust fixing via screw flange
- Coding of plug and terminal
- Different connection technologies possible (cage clamp, screw)
- Marking with stickers
- Measuring via test connection possible in part

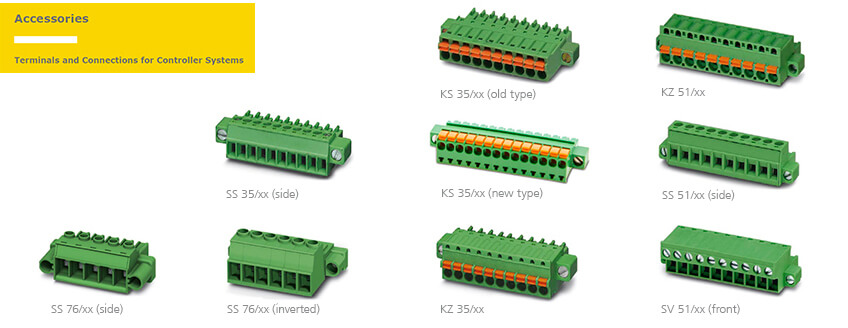

Fold out to read more about the different terminal and terminal sets:
3.5 Pitch, Small Cage Clamp Terminals KS 35/xx
Old type: Narrow design cage clamp terminals for rapid connection in push-in contacts with space saving 3.5 mm pitch. This terminal is ideally suited for analog signals with a test connection using a standard 1 mmØ test pin. The screw flanges also ensure a secure mounting even in rugged environments.
New type: Narrow design cage clamp terminals for rapid connection in push-in terminals with space saving 3.5 mm pitch. The front labelling feature and the test connection using a standard 1 mmØ test pin makes this terminal ideally suited for analog signals. The screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for terminal set inluding terminal KS 35/xx:
3.5 Pitch, Cage Clamp Terminals KZ 35/xx
Cage clamp terminals for rapid connection in push-in contacts with space saving 3.5 mm pitch. The front labeling facility and the test connection using a standard 1 mmØ test pin make this terminal ideally suited for analog signals and digital modules with a large number of channels. The screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for terminal set inluding terminal KZ 35/xx:
- KZ-ACR222 B
- KZ-AI204/1 B
- KZ-AIC212 B+C
- KZ-AIO202/SI B+C
- KZ-AIO204/SI B+C
- KZ-AIO208/SI B+C
- KZ-AIO288 B+C
- KZ-AO202 B+C
- KZ-DA3284-C B+C
- KZ-DIO248 B+C
- KZ-DIO264 B+C
- KZ-DIO280 B+C
- KZ-DMS202 B
- KZ-ISI222 B
- KZ-ISI222 B+D
- KZ-PTAI216 B+C
- KZ-PVA208 B+C
- KZ-SCT202 B+C
- KZ-SDI208 B+C
- KZ-SDO204 B+C
- KZ-SLC284 B+C
- KZ-TCO204-C B
- KZ-TCO216-C B+C
3.5 Pitch, Screw Terminals SS 35/xx (side)
Screw terminal for the safe connection in 3.5 mm pitch for finer wires up to max. 1.5 mm², as used for analog signals or compact digital modules. The terminals can be labeled on the front. The screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for terminal set inluding terminal SS 35/xx:
5.08 Pitch, Cage Clamp Terminals KZ 51/xx
Cage clamp terminals for rapid connection in push-in contacts with a 5.08 mm pitch. For larger cross-sections up to 2.5 mm² with front labelling and the test connection using a standard 1 mmØ test pin, this terminal is ideally suited for digital signals. The screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for item:
Terminal sets including terminal KZ 51/xx:
- KS-AIO208 B+C
- KS-AIO216 B+C
- KS-AIO288 B+C
- KS-GIO212 B+C
- KS-PTAI216 B+C
- KS-TI214 B+C
- KZ-ACR222 B
- KZ-AIC212 B+C
- KZ-AIO288 B+C
- KZ-CNT204 B
- KZ-DA3284-C B+C
- KZ-DI216 B+C
- KZ-DI232 B+C
- KZ-DIO16-C B+C
- KZ-DIO216 B+C
- KZ-DIO216/4 +C
- KZ-DIO232 B+C
- KZ-DIO264-C B+C
- KZ-DIO32-C B+C
- KZ-DMS202 B
- KZ-DO216 B+C
- KZ-DO232 B+C
- KZ-DOR206 B+C
- KZ-GSP274 B+C
- KZ-ISI222 B
- KZ-ISI222 B+D
- KZ-PTAI216 +C
- KZ-PVA204 B
- KZ-PVA208 B+C
- KZ-SCT202 B+C
- KZ-SDI208 B+C
- KZ-SDO204 B+C
- KZ-SLC284 B+C
- KZ-TCO204-C B
- KZ-TCO216-C B+C
- SS-AIO288 B+C
- SS-GMP232 B+C
- SS-GMP232/x B
- SS-PTAI216 B+C
5.08 Pitch, Cage Clamp Terminals SS 51/xx (side)
Screw terminal for the safe connection in 5.08 mm pitch and for larger cross-sections up to 2.5 mm² for digital signals. The terminals can be labeled on the front. The screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for item:
Terminal sets including terminal SS 51/xx:
5.08 Pitch, Screw Terminals SV 51/xx (front)
Screw terminals with screws on front enable convenient mounting and safe connection in 5.08 mm pitch for larger cross-sections up to 2.5 mm² for digital signals. The signals can be measured easily via the front screws. The screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for item:
Terminal sets including terminal SV 51/xx:
7.62 Pitch, Srew Terminals SS 76/xx
Side: Screw terminal is also designed for the safe connection of large cross-sections up to 6 mm² and corresponding voltage resistance up to 600 V of network measuring modules. Front labelling feature and with screw flanges also ensure a secure mounting even in rugged environments.
Inverted: Screw terminal with inverted face for reliable mechanical reverse polarity protection in comparison to SS 76/xx. The SS 76/xx inverted is also designed for the safe connection of large cross-sections up to 6 mm² and corresponding voltage resistance up to 600 V of network measuring modules. Front labelling feature and with screw flanges also ensure a secure mounting even in rugged environments.
Available terminals in online shop
See specifications for terminal set including terminal SS 76/xx:
