GMP232/1 CC 120V 1A

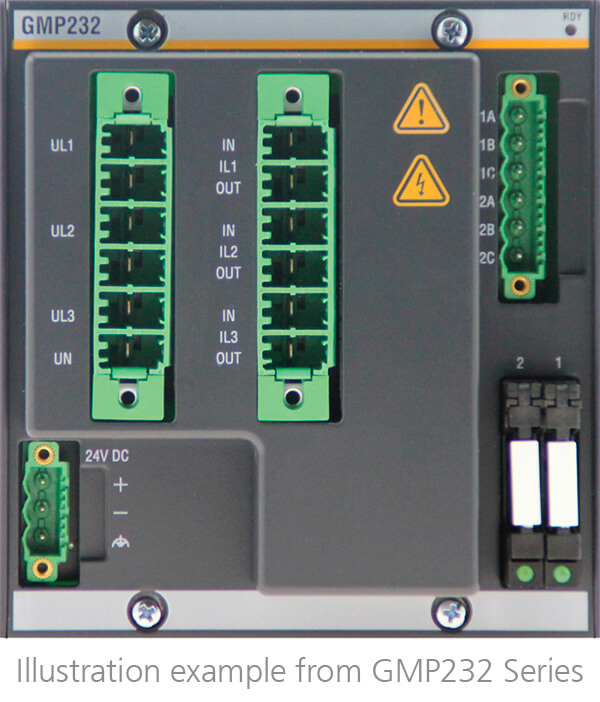

Bachmann GMP232/1 CC | Grid measurement and protection module for cold climate
Ask for quoted price.
Bachmann GMP232/1 CC 120V 1A | Grid measurement and protection module for cold climate
- 3x In 120V - 3x In 1A
- 2x Out Relay 24/48V DC - 230V AC
- U-/ I-/ P-/ Q-/ F-measurement
- 4Q-energy metering - integrated monitoring/protection functions - harmonic analysis - integrated realtime data recorder (24 channels)
- Data aggregation - sequence of event log with realtime stamp
- Cold Climate
Bachmann GMP232/1 CC 120V 1A | Grid measurement and protection module for cold climate
- Measurement of current, voltage, frequency, power, power factor, phase angle
- True RMS and fundamental RMS, symmetrical components
- High dynamic measurement
- Measurement of grid harmonics up to the 50th (PQ)
- Monitoring functions for grid and generator protection
- Direct relay outputs for circuit-breaker/trip circuits
- Integrated real-time data recorder
- Integrated event logging
- 4Q energy counter
- Integrated average values, grid statistics
- Measured value simulation
Please do refer to the product sheet for more details.
- Download PDF:
Product sheet from Bachmann electronic GmbH
